UPH密封圈 轴孔通用Y形圈
发布时间2018-01-02   浏览:1,394 views   调整大小: 16px  14px  12px

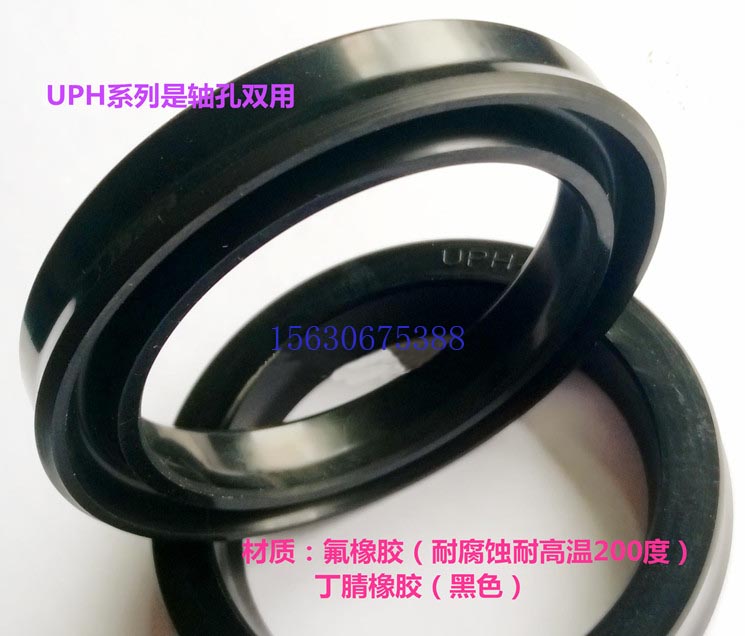

UPH密封圈

UPH密封圈

UPH型可用于活塞和活塞杆密封,这类密封件有较大的截面,可用于大范围的操作,使用的丁腈胶与氟橡胶材料可保证有广范的工作温度范围,具有广范的使用范围。
工作压力:≤ 32 Mpa
工作温度:-20℃– +180℃ (密封圈材料决定)

往复速度:≤0.5M/S

材料:丁腈腈(NBR),氟橡胶(FKM

序号 规格尺寸 序号 规格尺寸
1 UPH 6.3*16.3*7.5 122 UPH 132*157*19
2 UPH 6.3*16.3*8 123 UPH 135*155*15
3 UPH 7.1*17.1*7.5 124 UPH 135*160*15.7
4 UPH 7.1*17.1*8 125 UPH 135*160*19
5 UPH 8*18*7.5 126 UPH 140*160*15
6 UPH 8*18*8 127 UPH 140*165*19
7 UPH 9*19*7.5 128 UPH 145*165*15
8 UPH 9*19*8 129 UPH 145*170*19
9 UPH 10*20*7.5 130 UPH 150*170*15
10 UPH 10*20*8 131 UPH 150*175*19
11 UPH 11.2*21.2*7.5 132 UPH 155*180*15
12 UPH 11.2*21.2*8 133 UPH 155*180*15.7
13 UPH 12*25*8 134 UPH 155*180*19
14 UPH 12.5*22.5*7.5 135 UPH 160*185*15
15 UPH 12.5*22.5*8 136 UPH 160*185*19
16 UPH 14*24*7.5 137 UPH 165*190*15
17 UPH 14*24*8 138 UPH 165*190*19
18 UPH 15*25*8 139 UPH 170*195*15
19 UPH 15*28*10 140 UPH 170*195*19
20 UPH 16*26*7.5 141 UPH 175*200*15
21 UPH 16*26*8 142 UPH 175*200*15.7
22 UPH 16*32*10 143 UPH 175*200*19
23 UPH 18*28*8 144
24 UPH 18*31*10 145 UPH 180*205*15
25 UPH 18*33*10 146 UPH 180*205*19
26 UPH 18.5*31.5*10 147 UPH 185*210*15
27 UPH 20*30*8 148 UPH 190*215*15
28 UPH 20*33*10 149 UPH 190*215*19
29 UPH 20*35*10 150 UPH 199*224*15
30 UPH 21.5*31.5*8 151 UPH 199*224*15.7
31 UPH 22*35*10 152 UPH 199*224*19
32 UPH 22.4*32.4*8 153 UPH 200*225*15
33 UPH 22.4*35.4*10 154 UPH 200*225*19
34 UPH 25*35*8 155 UPH 210*235*18
35 UPH 25*38*10 156 UPH 212*237*19
36 UPH 25*40*10 157 UPH 215*240*19
37 UPH 25*45*10 158 UPH 224*249*19
38 UPH 25.5*35.5*8 159 UPH 225*250*18
39 UPH 27*40*10 160 UPH 225*250*19
40 UPH 28*40*10 161 UPH 236*261*19
41 UPH 28*41*10 162 UPH 250*275*19
42 UPH 28*43*10 163 UPH 255*280*19
43 UPH 30*43*10 164 UPH 265*297*24
44 UPH 30*45*10 165 UPH 270*300*18
45 UPH 31.5*44.5*10 166 UPH 270*300*24
46 UPH 31.5*46.5*10 167 UPH 280*310*22
47 UPH 32*45*10 168 UPH 280*312*24
48 UPH 32*46*10 169 UPH 283*315*24
49 UPH 32*48*10 170 UPH 290*320*18
50 UPH 34*50*12 171 UPH 290*320*22
51 UPH 35*50*10 172 UPH 300*332*24
52 UPH 35*50*12 173
53 174 UPH 310*340*18
54 UPH 35*51*12 175 UPH 310*340*22
55 UPH 35.5*50.5*10 176 UPH 315*347*24
56 UPH 35.5*51.5*12 177 UPH 320*340*12
57 UPH 38*52*10 178 UPH 320*350*22
58 UPH 40*55*10 179 UPH 323*355*24
59 UPH 40*56*10 180 UPH 330*355*16
60 UPH 40*56*12 181 UPH 330*356*20
61 UPH 40*60*12 182 UPH 330*360*22
62 UPH 41*56*10 183 UPH 335*355*14
63 UPH 45*60*10 184 UPH 335*367*24
64 UPH 45*60*12 185 UPH 340*370*22
65 UPH 45*61*12 186 UPH 345*365*14
66 UPH 47*63*12 187 UPH 348*380*24
67 UPH 48*63*10 188 UPH 350*370*14
68 UPH 50*65*10 189 UPH 350*380*22
69 UPH 50*66*12 190 UPH 355*385*22
70 UPH 50*70*12 191 UPH 355*387*24
71 UPH 51*71*12 192 UPH 360*390*22
72 UPH 53*69*12 193 UPH 365*395*22
73 UPH 53*73*12 194 UPH 368*400*24
74 UPH 55*71*12 195 UPH 370*400*23
75 UPH 55*75*12 196 UPH 370*400*25
76 UPH 55*80*15 197 UPH 371*396*16
77 UPH 56*72*12 198 UPH 375*407*24
78 UPH 56*76*12 199 UPH 380*400*15
79 UPH 60*76*12 200 UPH 380*410*15
80 UPH 60*80*12 201 UPH 380*420*30
81 UPH 63*79*12 202 UPH 390*420*22
82 UPH 63*83*12 203 UPH 395*425*22
83 UPH 64*80*12 204 UPH 400*430*22
84 UPH 65*81*12 205 UPH 400*430*25
85 UPH 65*85*12 206 UPH 400*432*24
86 UPH 67*87*12 207 UPH 420*455*25
87 UPH 67*87*15 208 UPH 425*457*24
88 UPH 70*90*12 209 UPH 430*470*20
89 UPH 70*90*15 210 UPH 435*470*25
90 UPH 71*91*12 211 UPH 440*480*35
91 UPH 71*91*15 212 UPH 445*470*18
92 UPH 75*95*12 213 UPH 450*480*22
93 UPH 75*95*15 214 UPH 450*482*24
94 UPH 80*100*12 215 UPH 460*500*20
95 UPH 80*100*15 216
96 217 UPH 475*507*24
97 UPH 85*105*12 218 UPH 480*505*18
98 UPH 85*105*15 219 UPH 490*530*25
99 UPH 90*110*12 220 UPH 520*550*17
100 UPH 90*110*15 221 UPH 525*555*15
101 UPH 92*112*12 222 UPH 530*570*20
102 UPH 92*112*15 223 UPH 540*560*14
103 UPH 95*115*12 224 UPH 570*600*17
104 UPH 95*115*15 225 UPH 600*630*20
105 UPH 95*120*15 226 UPH 600*630*28
106 UPH 100*120*12 227 UPH 600*640*30
107 UPH 100*120*15 228 UPH 640*685*25
108 UPH 100*125*15 229 UPH 700*730*15
109 UPH 105*125*15 230
110 UPH 106*126*15 231 UPH 760*800*34
111 UPH 110*130*15 232 UPH 768*800*30
112 UPH 112*132*15 233 UPH 818*850*24
113 UPH 115*135*15 234 UPH 825*850*16
114 UPH 118*138*15 235 UPH 825*860*27
115 UPH 120*140*15 236 UPH 925*950*14
116 UPH 125*145*15 237 UPH 950*980*20
117 238
118 UPH 125*150*19 239 UPH 1020*1050*18
119 UPH 130*150*15 240 UPH 1025*1055*15
120 UPH 130*155*19 241 UPH 1100*1140*20
121 UPH 132*152*15 242 UPH 1220*1280*30
243 UPH 1560*1600*20
244 UPH 1620*1680*30
